YEO-100

YEO-100C SEMI CLOSED CELL EPDM FOAM

Density: 100+/-30kg/m3
Rolls are available from thickness 3mm to 15mm.
Without Diazene-1,2-dicarboxamide.
Certificate: ELV, 4P, Fire resistance, VOC, Odor
Please contact us for the details.
Details

YEO-100C

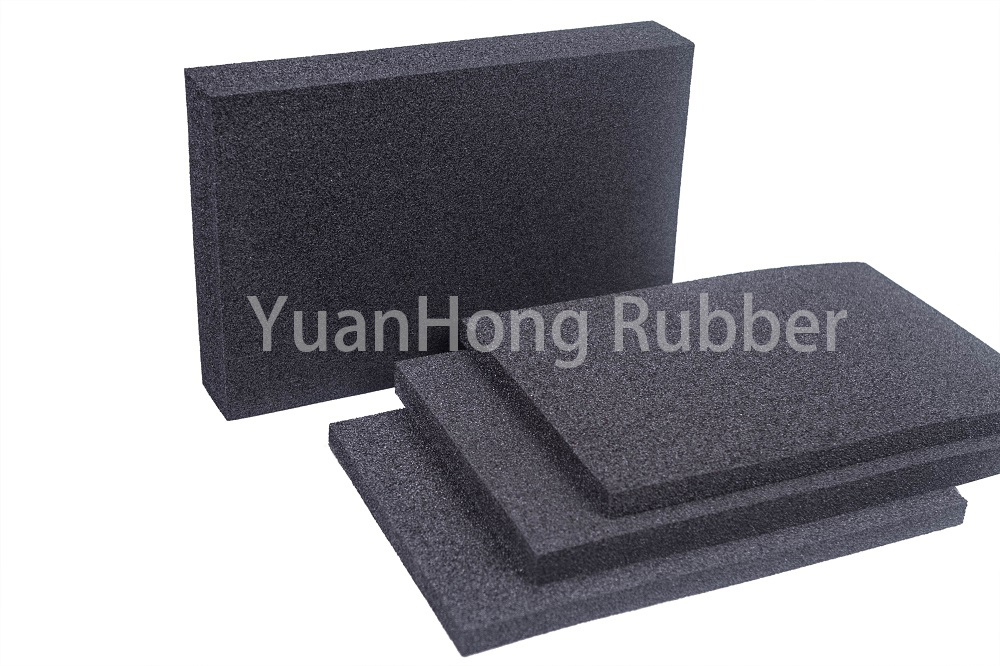

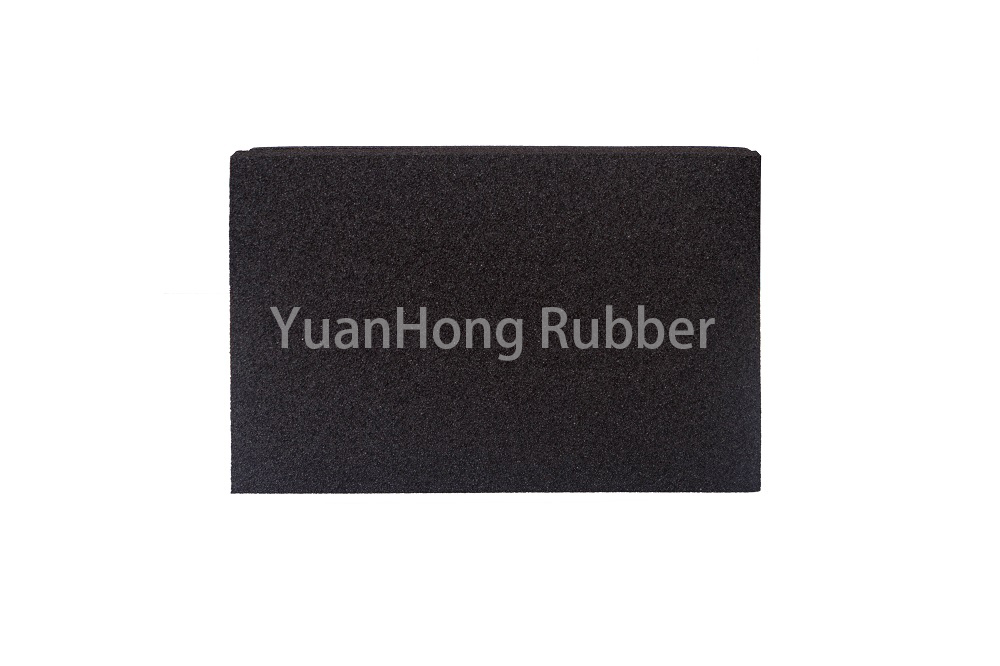

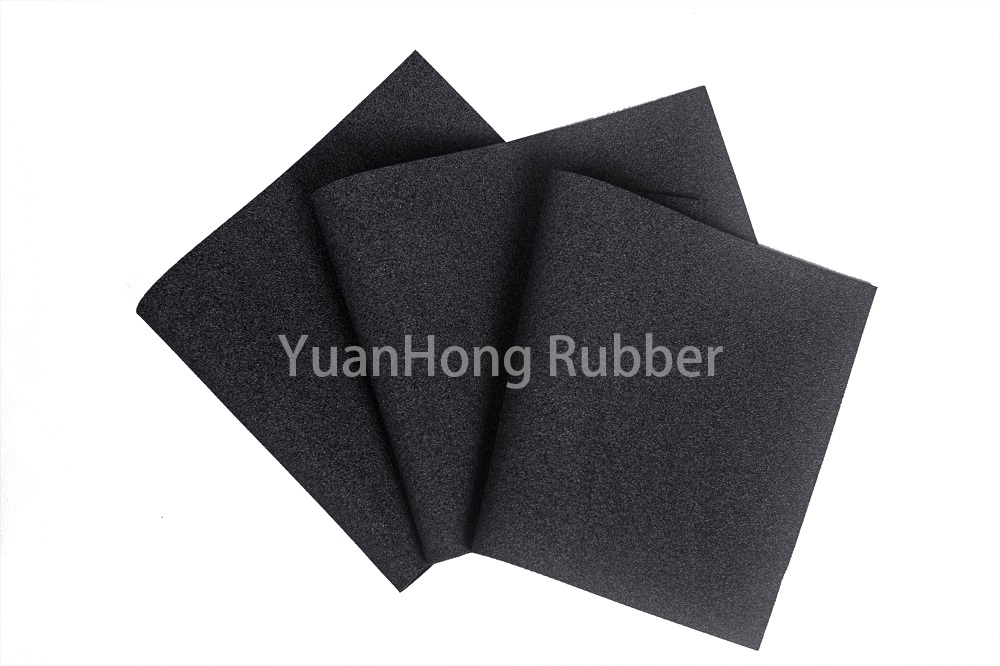

Closed Cell Structure Coarse Bubble EPDM Foam Sealing Material

The foam is designed and produced from the base material EPDM rubber with closed cell structure for a wide range of high-performance cushioning and sealing applications.



Main Feature

Excellent weather resistance and water resistance.

Closed cell structure with better elasticity and toughness;

When the compression is 50%, the U-shaped water resistance of 100mm water depth can be realized;

Low VOC, meet the requirements of the automotive industry;

Durability, weather resistance, cold resistance, UV resistance, chemical resistance, and resistance to deterioration.

Application

Mainly used in the connection position of air conditioner. The position requiring high waterproofness. Taillights sealing.

Standard Size



Thickness (mm)

Width (mm)

Length (m)

2 - 15 (With under skin2 - 20)

1000

2

 Special request in the length and thickness, please contact us for details.

Specification

Base Material

-

EPDM

Color

-

Black

Density, kg/m3

ISO845

100±30 kg/m3

Compression Deflection, kPa

ISO3386 @33%

25±10 kPa

Tensile Strength, kPa

ISO1798

100 kPa

Elongation, %

ISO1798

400%

Compression set

ISO815-1 @50%,24H,23

10%

Service Temperature

-

-50130

Flame retardancy

FMVSS302/GB8410

100mm/min (Above 5mmt)

  * The above data is typical value, not guaranteed value.
