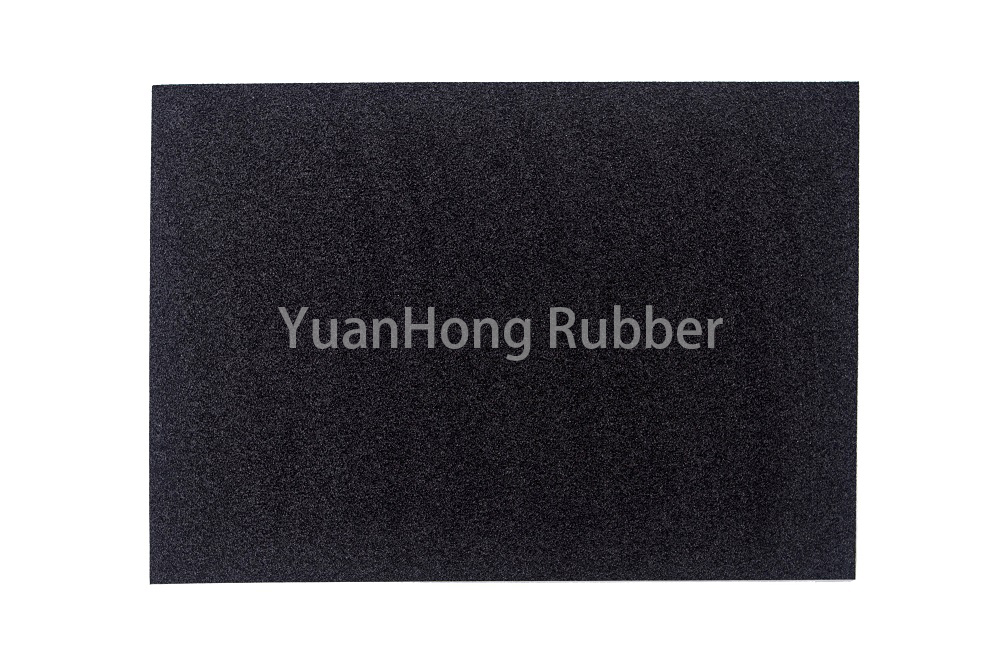

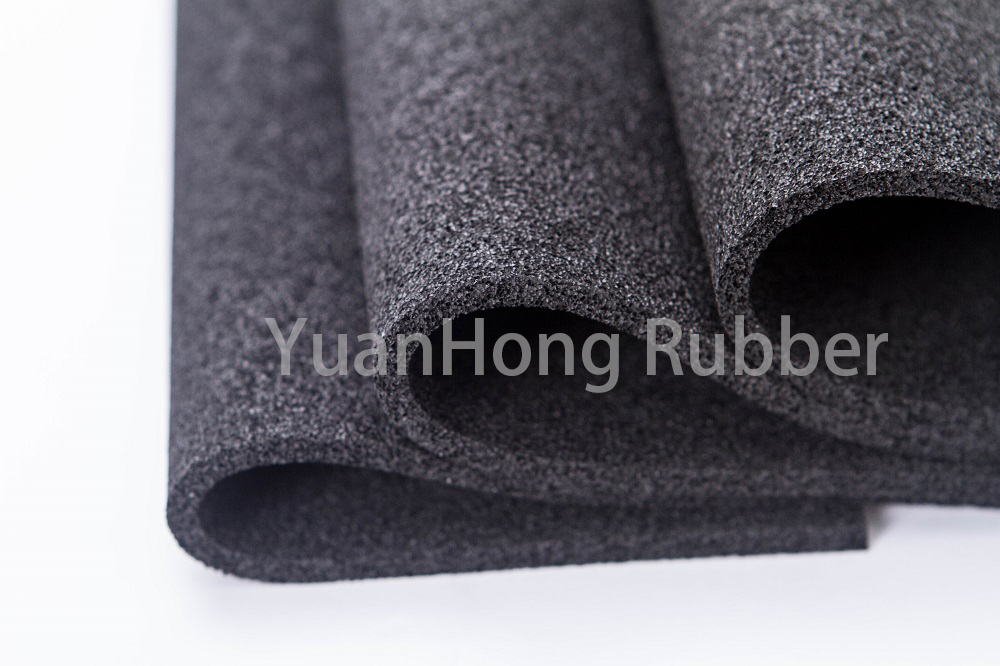

NBR/PVC
Open Cell Rubber and Plastic Extrusion Foam
The foam is designed and produced from the base material NBR and PVC blended with open cell structure for a wide range of heat preservation, cushioning and sealing applications.
Main Feature
☆ Contains a variety of anti-aging components, with long-term resistance to severe cold, hot, dry, humid and other harsh environments, long service life;
☆The thermal conductivity is small and has excellent thermal insulation performance;
☆Could work in wide temperature range, excellent low temperature resistance, no hard and brittle at -400 C;
☆It is difficult to burn, self-extinguishing, non-flammable, meet fire protection requirements, safe and reliable.
Standard Size
Thickness (mm) | Width (mm) | Length (m) |
3 - 30 | 1000 | 2 |
Special request in the length and thickness, please contact us for details.
Specification
Item | Standard | NBR/PVC |
Color | - | Black |
Density, kg/m3 | ISO845 | 70±20 kg/m3 |
Compression Deflection, kPa | ISO3386@25% | ≦5 kpa |
Tensile Strength, kPa | ISO1798 | ≧100 kpa |
Elongation, % | ISO1798 | ≧120% |
Compression set | GB/T6669 | ≦10% |
Tearing Strength | GB/T10808 | ≧250 N/m |
Oxygen Index | GB/T2406 | ≧26% |
High Temperature Resistance 105 OC +/-3 OC, 7D | GB/T17794 | ≦10% |
Low Temperature Resistance -40OC+/-3 OC, 5H | GB/T17794 | Soft, No crack |
Fire Resistance | UL94HF-1 | Pass |
The above data is typical, not guaranteed.
