YEC Series (120/150/180/200/150S/150H)

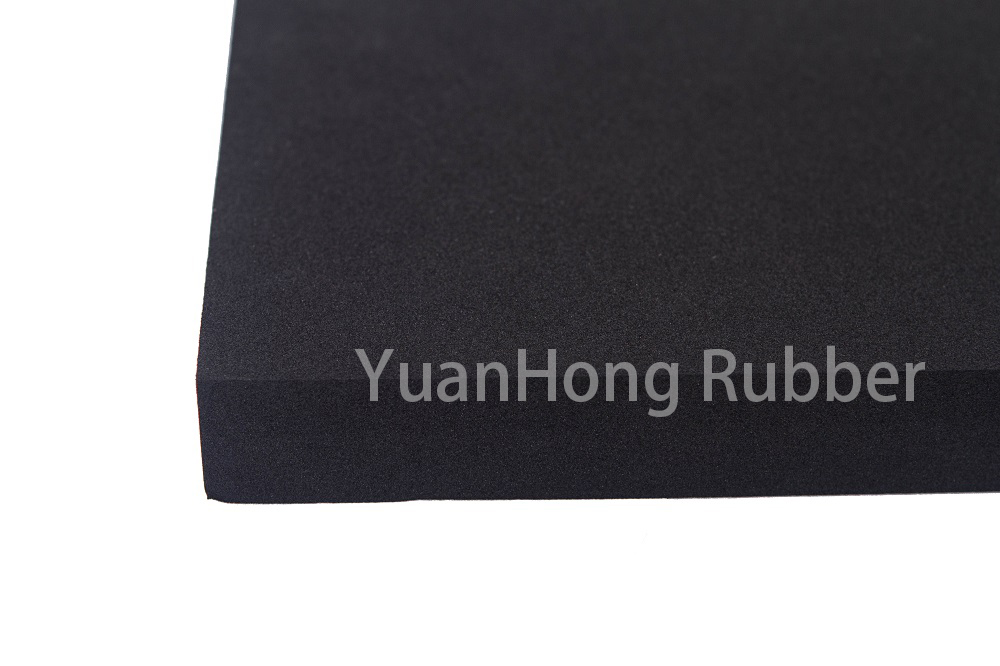

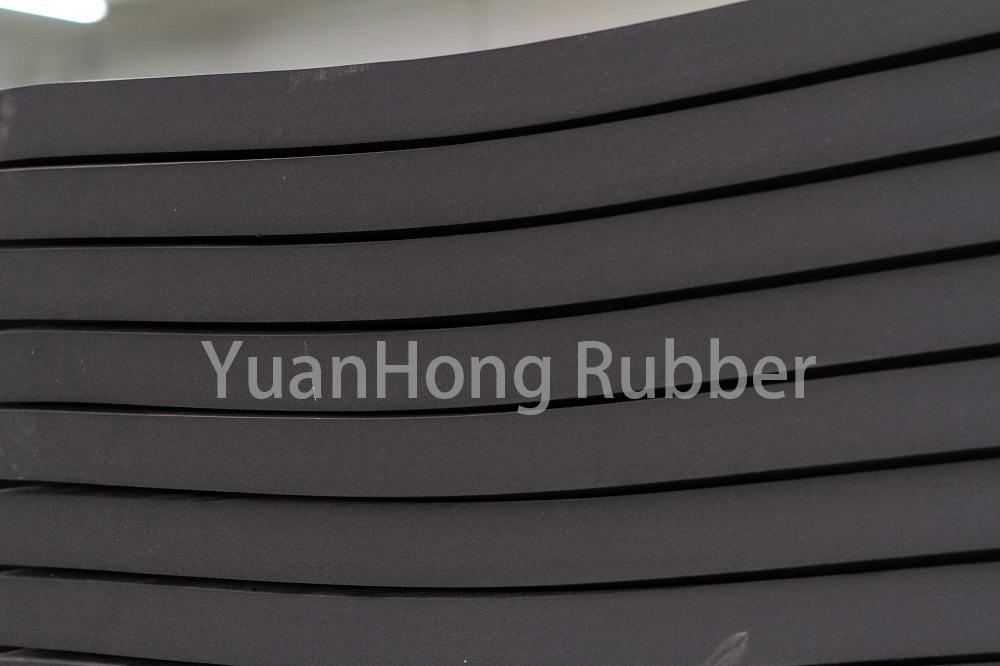

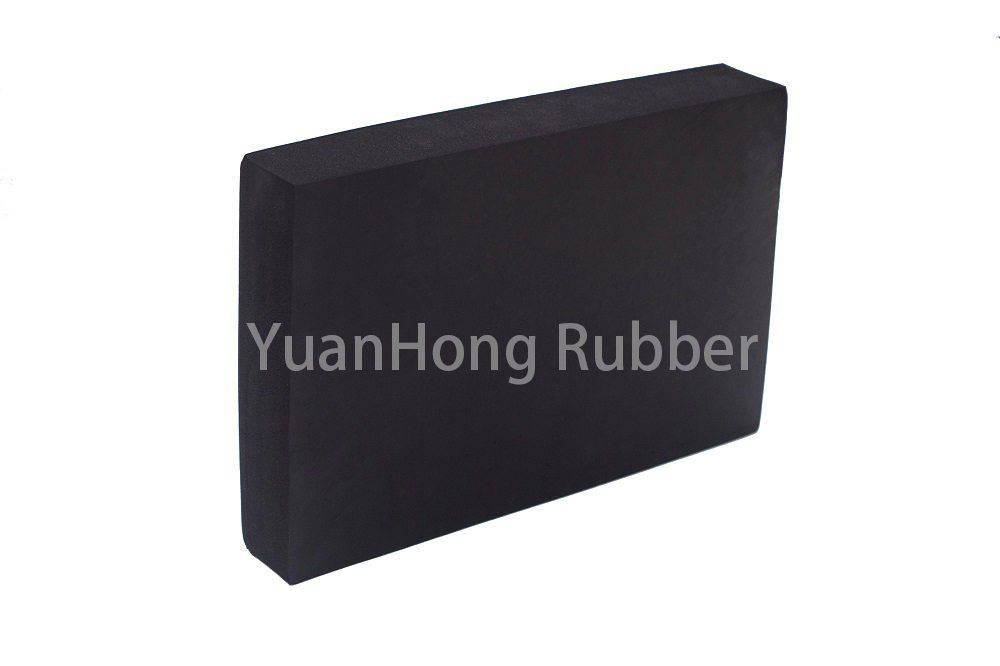

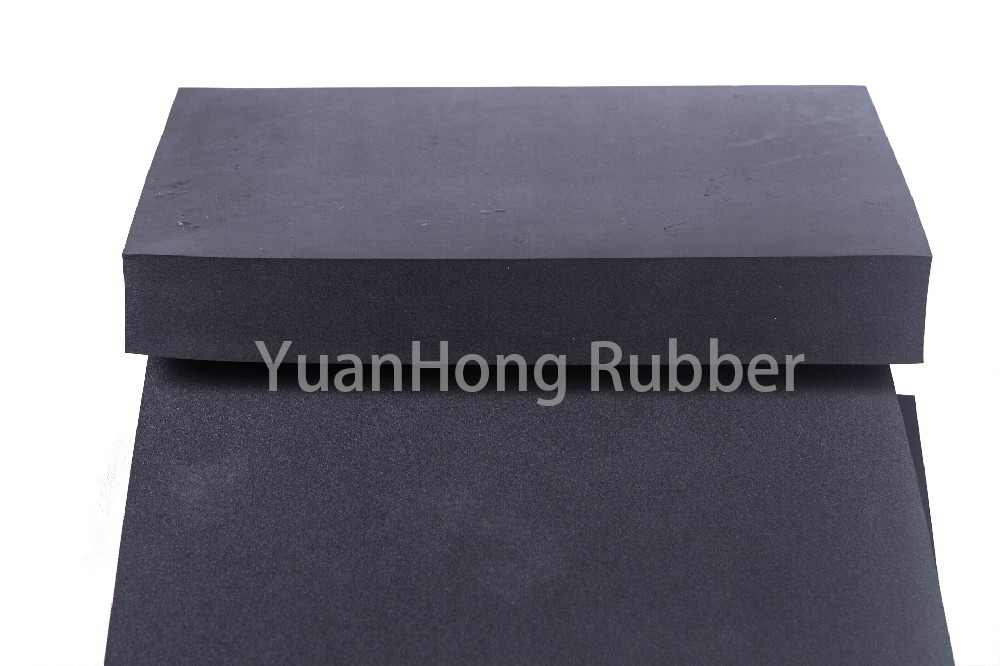

Closed Cell EPDM Foam
The foam is designed and produced from the base material EPDM rubber with closed cell structure for a wide range of high-performance cushioning and sealing applications.
Main Feature
☆ Light weight, excellent strength performance; vibration damping; excellent weather resistance.
☆ Closed-cell structure, water absorption is below 3%; low thermal conductivity and excellent thermal insulation performance;
☆ Excellent resistance to cold and heat, can be used in the temperature range of -50 to 130 °C.
☆ YEC-150H does not contain PAHs; YEC-150S is softer.
Application
☆ Precision machines, medical equipment, furniture and other transportation cushioning materials;
☆ Vehicle door panel, rear tail box, door lock and other cushions; various pipes, taillights, engine shockproof materials, etc.;
☆ Insulation and sealing materials for air conditioners, refrigerators etc.;
☆ Anti-noise sealing of various machinery, waterproof and moisture proof of electrical appliances, etc.
Standard Size
Thickness (mm) | Width (mm) | Length (m) |
1 - 47 | 1000 | 2 |
Specification
Item | Standard | YEC-120 | YEC-150S | YEC-150 | YEC-150H | YEC-180 | YEC-200 |
Density, kg/m3 | ISO845 | 120±20 | 120±20 | 140±20 | 140±20 | 160±20 | 180±20 |
Hardness Shore C | - | 12±5 | 6±5 | 15±5 | 15±5 | 20±5 | 25±5 |
Compression Deflection, kPa | ISO3386@25% | 20-50 | 10-40 | 30-60 | 30-60 | 40-70 | 50-90 |
Tensile Strength, kPa | ISO1798 | ≧300 | ≧300 | ≧300 | ≧300 | ≧300 | ≧300 |
Elongation, % | ISO1798 | ≧120 | ≧120 | ≧120 | ≧120 | ≧120 | ≧120 |
Heat Shrinkage, % | 70℃, 4H | ≦4 | ≦3 | ≦3 | ≦3 | ≦3 | ≦3 |
Compression Set, % | ISO815-1 @50%, 22H, 23℃ | ≦40 | ≦40 | ≦40 | ≦40 | ≦40 | ≦40 |
