YEO-120
Semi Closed Cell EPDM Foam
The foam is designed and produced from the base material EPDM rubber with semi closed cell structure for a wide range of high-performance cushioning and sealing applications.
Main Feature
☆ Low density, soft and easy to use. Effectively and adequately seal even if the gap being filled is greatly deteriorated.
☆ When compressed by 80%, the watertight effect comparable to closed-cell foam can be achieved.
☆ The rebound force is small when compressed, and does not cause deformation of the opponent or structural parts after filling.
☆ Low VOC, meet the requirements of the automotive industry.
☆ Durability, weather resistance, cold resistance, UV resistance, chemical resistance, and resistance to deterioration

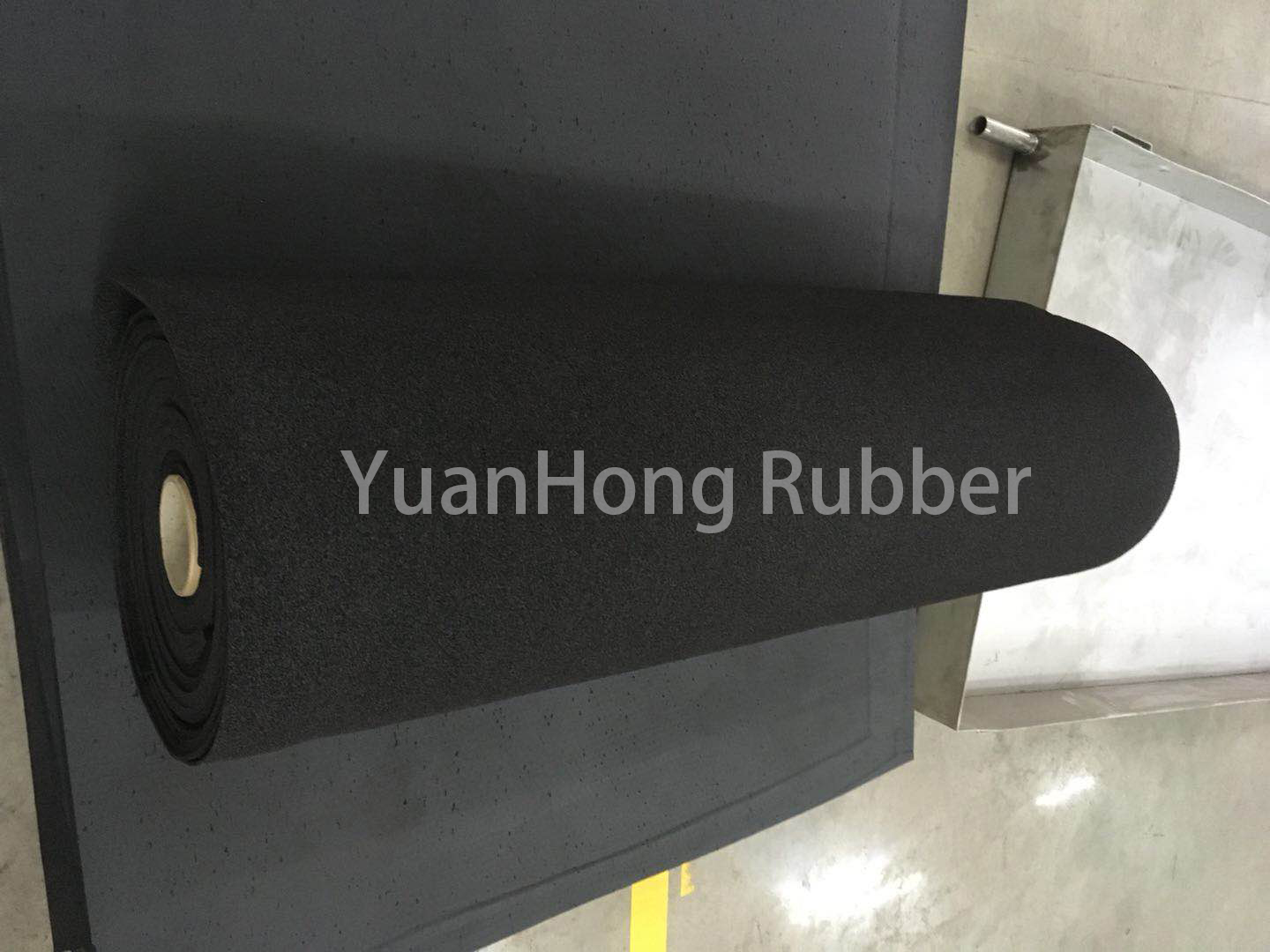

☆ Sheets and rolls are both available.
Application
☆ Mainly used in automotive air conditioning modules, interiors, rearview mirrors, center columns, windshields, etc. need to be waterproof, airtight, sound insulation, sound absorption, heat insulation, vibration, buffer and other parts.
Standard Size
Thickness (mm) | Width (mm) | Length (m) |
3 - 20 | 900 | 2 |
special request in the length and thickness, please contact us for details.
Specification
Item | Standard | YEC-120 |
Color | - | Black |
Density, kg/m3 | ISO845 | 120±20 kg/m3 |
Compression Deflection, kPa | ISO3386@25% | ≦6 kpa |
Tensile Strength, kPa | ISO1798 | ≧90 kpa |
Elongation, % | ISO1798 | ≧450% |
Compression set | ISO815-1 @50%, 22H, 23℃ | ≦5% |
Service Temperature | - | -50 to 130 ℃ |
Flame retardancy | FMVSS302/GB8410 | ≦100mm/min (Above 5mm) |
